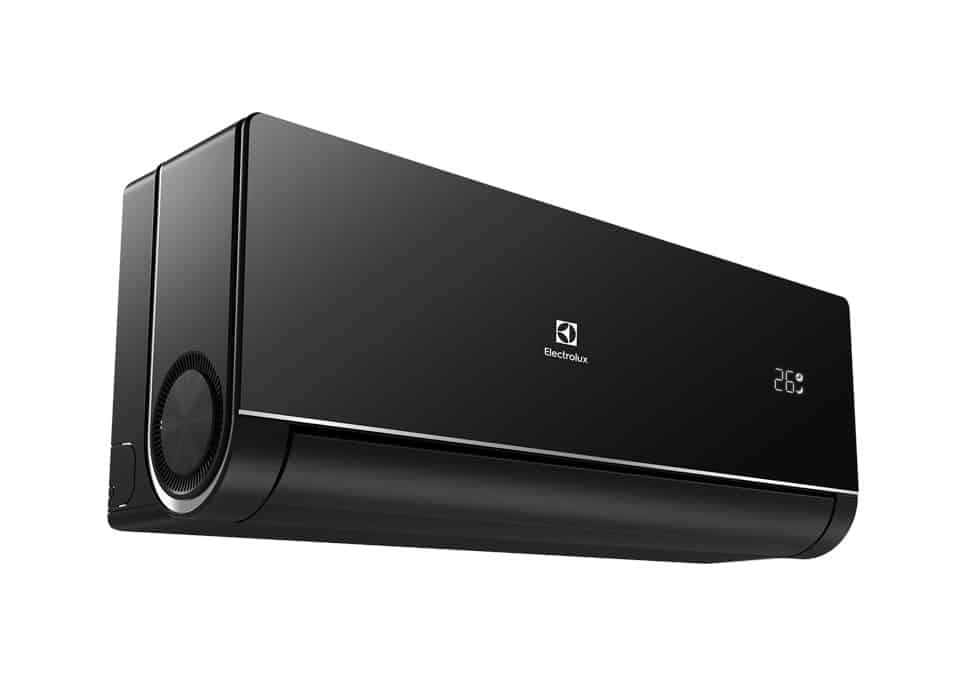

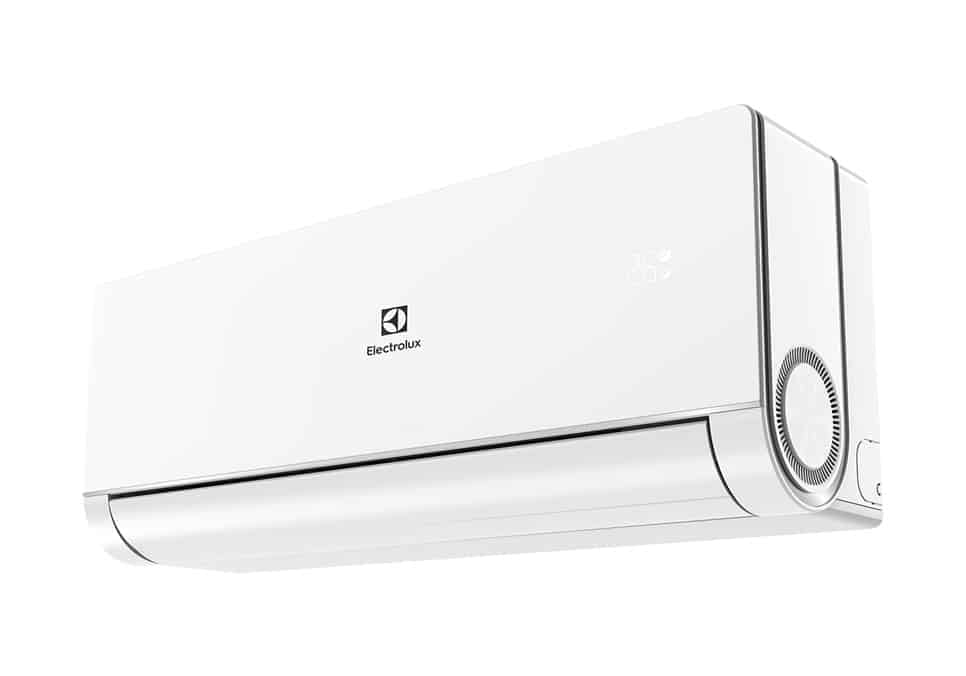

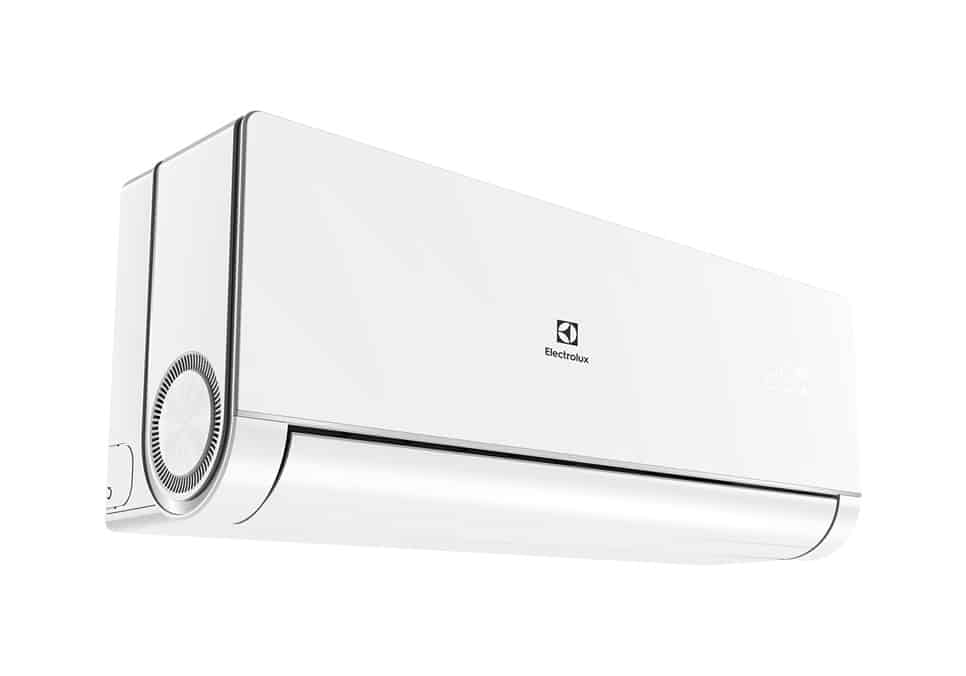

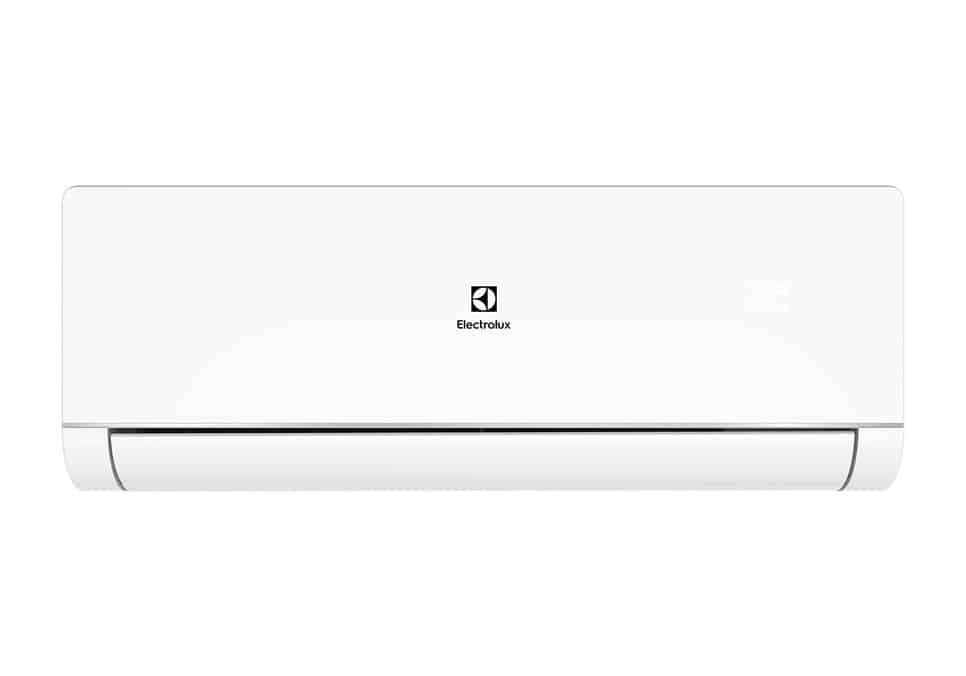

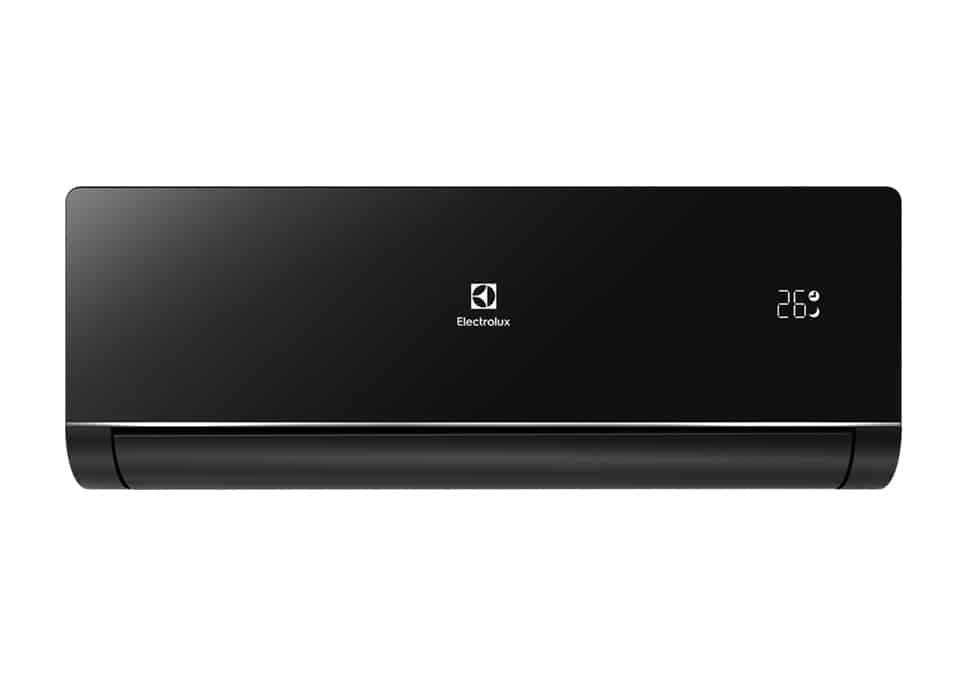

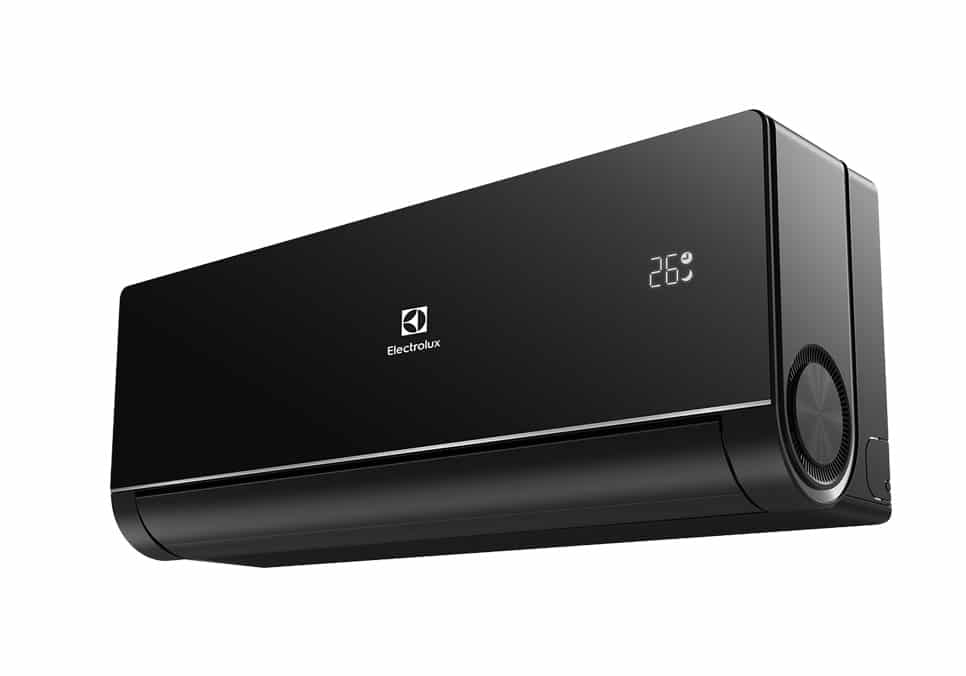

Lux Air - T3
Size :
Model :
- PureGuard+ filtration system reduces 99.5% of harmful bacteria for cleaner air.
- Enormous size with air throw reach of 15m distributes air uniformly across the room.
- DCMax function improves energy efficiency and helps you save more.
- LowVolt Boost function can start your cooling unit at 140 Volts.
Unique Feature
—————–
——————
——————–
———————
Share
FlowMax 3D Technology
Creative side panels & side air intake design
ScentBreeze Technology
Enjoy memorable moments with fresh aromatic air
Comfort in every direction
FlowMax 3D Technology delivers uniform airflow across the room—no hot spots, just perfect cooling from every angle.
Freshness you can feel
ScentBreeze Technology gently infuses the air with a light fragrance, creating a refreshing and pleasant indoor atmosphere.
Protected from the inside out
Anti Rust Coating provides durable protection against corrosion, extending the life through every season.
Cleaner air for healthier living
Advanced Health Filters capture dust, allergens, and airborne bacteria—helping you breathe easier every day.
Features
| FlowMax 3D Technology | DC Max | ScentBreeze Technology |
| Health Filters | Variable Capacity Function | 5E Technology |
| Gentle Cool Wind | Mega Power Air Supply | Smart Air Flow Plus |
| Compliant to BMS System | 6 Fan Speed | Independent Dehumidification |
| Refrigerant Leak Detection | Smart Sleep Mode | Anti Rust Coating |
| Intelligent Defrost |
Tech specification
Key Specification
Size
— mm (W)
— mm (H)
Total depth, including door and handle
— mm
User Manual Download
User manual
Dimension guide
View Full Specification
| General Information | |
|---|---|
|
Product Model |
ELSAC 12K LUX AIR T3 INV |
|
Product Type |
Cooling & Heating |
|
Panel Colors |
Black & White |
|
Power Supply (Ph-V-Hz) |
1P – 220V ~ 240V – 50 Hz |
|
Voltage Range (V) |
165 ~ 265 |
|
Cooling Capacity (Btu/h) |
12,000 |
|
Cooling Rated Power Input (W) |
1089(290~1500) |
|
Cooling Rated Current (A) |
4.9(1.5~9.0) |
|
Cooling EER (W/W) |
3.23 |
|
Heating Capacity (Btu/h) |
13,000 |
|
Heating Rated Power Input (W) |
1012(290~1730) |
|
Heating Rated Current (A) |
4.6(1.5~10.0) |
|
Heating COP (W/W) |
3.75 |
|
Indoor Air Flow (m3/h) |
560 |
|
Indoor Unit Dimensions (W*D*H) |
808*305*209 mm |
|
Indoor Unit Net Weight |
9.70 Kg |
|
Outdoor Unit Dimensions (W*D*H) |
818*520*325 mm |
|
Outdoor Unit Net Weight |
22.00 Kg |
|
Refrigerant |
R32/0.57 Kg |
View Full Specification
| General Information | |
|---|---|
|
Product Model |
ELSAC 18K LUX AIR T3 INV |
|
Product Type |
Cooling & Heating |
|
Panel Colors |
Black & White |
|
Power Supply (Ph-V-Hz) |
1P – 220V ~ 240V – 50 Hz |
|
Voltage Range (V) |
165 ~ 265 |
|
Cooling Capacity (Btu/h) |
18,000 |
|
Cooling Rated Power Input (W) |
1954 (200~2600) |
|
Cooling Rated Current (A) |
8.7 (1.5~13.0) |
|
Cooling EER (W/W) |
3.60 |
|
Heating Capacity (Btu/h) |
18,500 |
|
Heating Rated Power Input (W) |
1938 (230~2600) |
|
Heating Rated Current (A) |
8.6 (1.5~13.0) |
|
Heating COP (W/W) |
3.70 |
|
Indoor Air Flow (m3/h) |
1200 |
|
Indoor Unit Dimensions (W*D*H) |
1096*333*222 mm |
|
Indoor Unit Net Weight |
13.90 Kg |
|
Outdoor Unit Dimensions (W*D*H) |
890*385*628 mm |
|
Outdoor Unit Net Weight |
31.00 Kg |
|
Refrigerant |
R32/1.06 Kg |
View Full Specification
| General Information | |
|---|---|
|
Product Model |
ELSAC 24K LUX AIR T3 INV |
|
Product Type |
Cooling & Heating |
|
Panel Colors |
Black & White |
|
Power Supply (Ph-V-Hz) |
1P – 220V ~ 240V – 50 Hz |
|
Voltage Range (V) |
165 ~ 265 |
|
Cooling Capacity (Btu/h) |
24,000 |
|
Cooling Rated Power Input (W) |
2100(410~2800) |
|
Cooling Rated Current (A) |
9.6 (2.3~13.0) |
|
Cooling EER (W/W) |
3.34 |
|
Heating Capacity (Btu/h) |
25,000 |
|
Heating Rated Power Input (W) |
1895 (420~3000) |
|
Heating Rated Current (A) |
8.7 (2.3~14.0) |
|
Heating COP (W/W) |
3.86 |
|
Indoor Air Flow (m3/h) |
1100 |
|
Indoor Unit Dimensions (W*D*H) |
1096*333*222 mm |
|
Indoor Unit Net Weight |
13.90 Kg |
|
Outdoor Unit Dimensions (W*D*H) |
950*732*420 mm |
|
Outdoor Unit Net Weight |
38.00 Kg |
|
Refrigerant |
R32/1.07 Kg |
