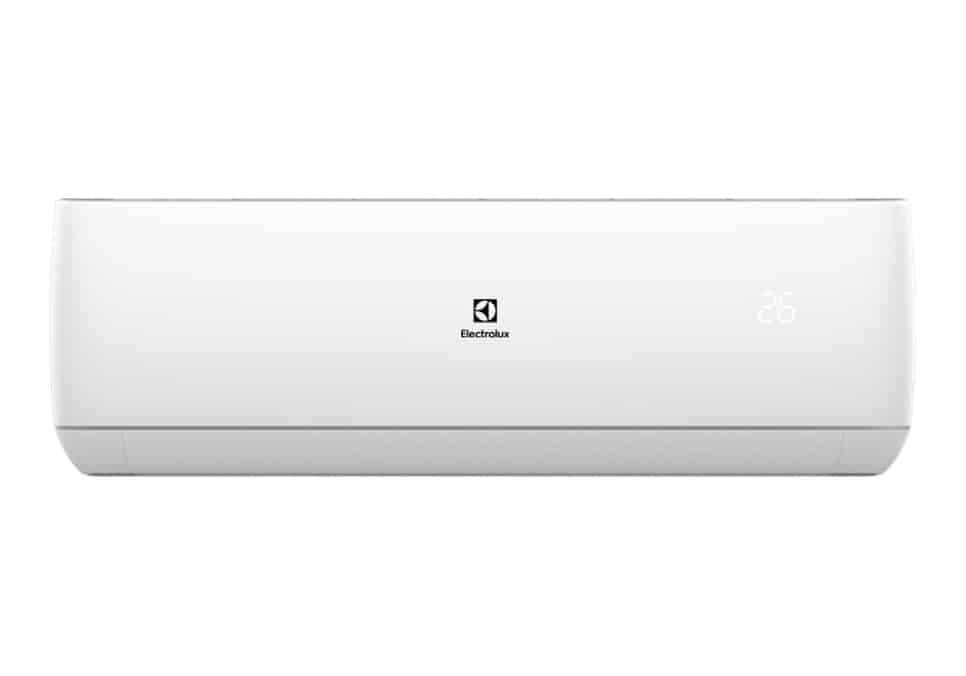

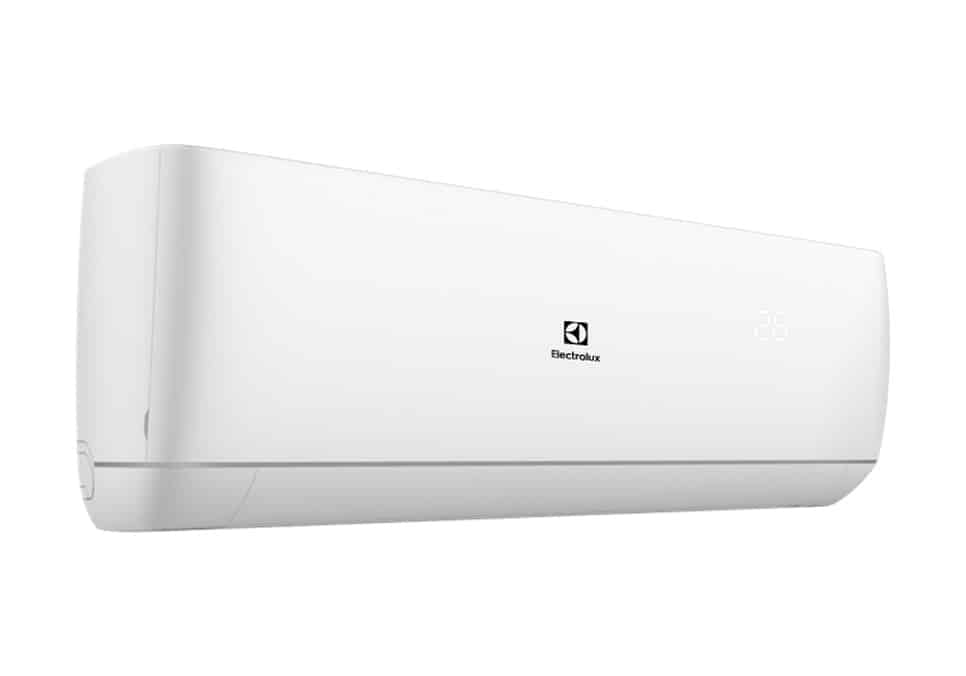

Active Air - T3
Size :
Model: ELSAC 12K ACTIVE AIR INV
Model: ELSAC 18K ACTIVE AIR INV
Model: ELSAC 24K ACTIVE AIR INV
Color :
- PureGuard+ filtration system reduces 99.5% of harmful bacteria for cleaner air.
- Enormous size with air throw reach of 15m distributes air uniformly across the room.
- DCMax function improves energy efficiency and helps you save more.
- LowVolt Boost function can start your cooling unit at 140 Volts
Unique Feature
—————–
——————
——————–
———————
Share
Breathe cleaner, live better
PureGuard+ advanced filtration helps eliminate dust, allergens, and bacteria for healthier indoor air.
Cooling that reaches every corner
With a powerful 15-meter air throw, enjoy even cooling across larger spaces with ease.
Power through low voltage
LowVolt Boost ensures consistent performance even during voltage fluctuations, keeping your comfort uninterrupted.
Ultimate comfort all night
Built to last in every season
Anti Rust Coating adds extra protection against corrosion, enhancing durability and performance year-round.
Convenience at its best
The remote control function allows you to precisely and effectively regulate the
Features
| DC Max Technology | Variable Capacity Function | Enormous IDU Size |
| LowVolt Boost Function | PureGuard+ Filtration | 15M Long Air Throw |
| Large Airflow Volume | Ultra Silence | 30s Fast Cooling |
| 60s Fast Heating | 57C High Temperature Sterilization | Anti Rust Coating |
Tech specification
Key Specification
| Indoor Unit | |
|---|---|
|
Dimensions (W*D*H) |
———- |
|
Net Weight |
——- |
User Manual Download
User manual
Dimension guide
View Full Specification
| General Information | |
|---|---|
|
Product Model |
ELSAC 12K ACTIVE AIR INV |
|
Product Type |
Cooling & Heating |
|
Panel Colors |
Black & White |
|
Power Supply (Ph-V-Hz) |
1P – 220V ~ 240V – 50 Hz |
|
Voltage Range (V) |
140 ~ 265 |
|
Cooling Capacity (Btu/h) |
12,000 |
|
Cooling Rated Power Input (W) |
1100 (300~1350) |
|
Cooling Rated Current (A) |
5.3 (1.5~6.0) |
|
Cooling EER (W/W) |
3.20 |
|
Heating Capacity (Btu/h) |
12,100 |
|
Heating Rated Power Input (W) |
970 (300~1350) |
|
Heating Rated Current (A) |
4.6 (1.5~6.0) |
|
Heating COP (W/W) |
3.66 |
|
Indoor Air Flow (m3/h) |
600 |
|
Indoor Unit Dimensions (W*D*H) |
792*292*201 mm |
|
Indoor Unit Net Weight |
8.50 Kg |
|
Outdoor Unit Dimensions (W*D*H) |
705*279*530 mm |
|
Outdoor Unit Net Weight |
22.50 Kg |
|
Refrigerant |
R32/0.49 Kg |
View Full Specification
| General Information | |
|---|---|
|
Product Model |
ELSAC 18K ACTIVE AIR INV |
|
Product Type |
Cooling & Heating |
|
Panel Colors |
Black & White |
|
Power Supply (Ph-V-Hz) |
1P – 220V ~ 240V – 50 Hz |
|
Voltage Range (V) |
140 ~ 265 |
|
Cooling Capacity (Btu/h) |
18,000 |
|
Cooling Rated Power Input (W) |
1560(300-2400) |
|
Cooling Rated Current (A) |
7.3(1.4-10.6) |
|
Cooling EER (W/W) |
3.40 |
|
Heating Capacity (Btu/h) |
19,000 |
|
Heating Rated Power Input (W) |
1450(300-2200) |
|
Heating Rated Current (A) |
6.9(1.4-10) |
|
Heating COP (W/W) |
3.86 |
|
Indoor Air Flow (m3/h) |
1200 |
|
Indoor Unit Dimensions (W*D*H) |
1132*330*232 mm |
|
Indoor Unit Net Weight |
14.00 Kg |
|
Outdoor Unit Dimensions (W*D*H) |
785*555*300 mm |
|
Outdoor Unit Net Weight |
27.00 Kg |
|
Refrigerant |
R32/0.9 Kg |
View Full Specification
| General Information | |
|---|---|
|
Product Model |
ELSAC 24K ACTIVE AIR INV |
|
Product Type |
Cooling & Heating |
|
Panel Colors |
Black & White |
|
Power Supply (Ph-V-Hz) |
1P – 220V ~ 240V – 50 Hz |
|
Voltage Range (V) |
140 ~ 265 |
|
Cooling Capacity (Btu/h) |
23,000 |
|
Cooling Rated Power Input (W) |
2000(230-2760) |
|
Cooling Rated Current (A) |
8.96(1-12) |
|
Cooling EER (W/W) |
3.20 |
|
Heating Capacity (Btu/h) |
25,100 |
|
Heating Rated Power Input (W) |
1840(230-2530) |
|
Heating Rated Current (A) |
8.24(1-12) |
|
Heating COP (W/W) |
3.60 |
|
Indoor Air Flow (m3/h) |
1250 |
|
Indoor Unit Dimensions (W*D*H) |
1132*330*223 mm |
|
Indoor Unit Net Weight |
14.00 Kg |
|
Outdoor Unit Dimensions (W*D*H) |
900*700*350 mm |
|
Outdoor Unit Net Weight |
42.50 Kg |
|
Refrigerant |
R32/1.07 Kg |
